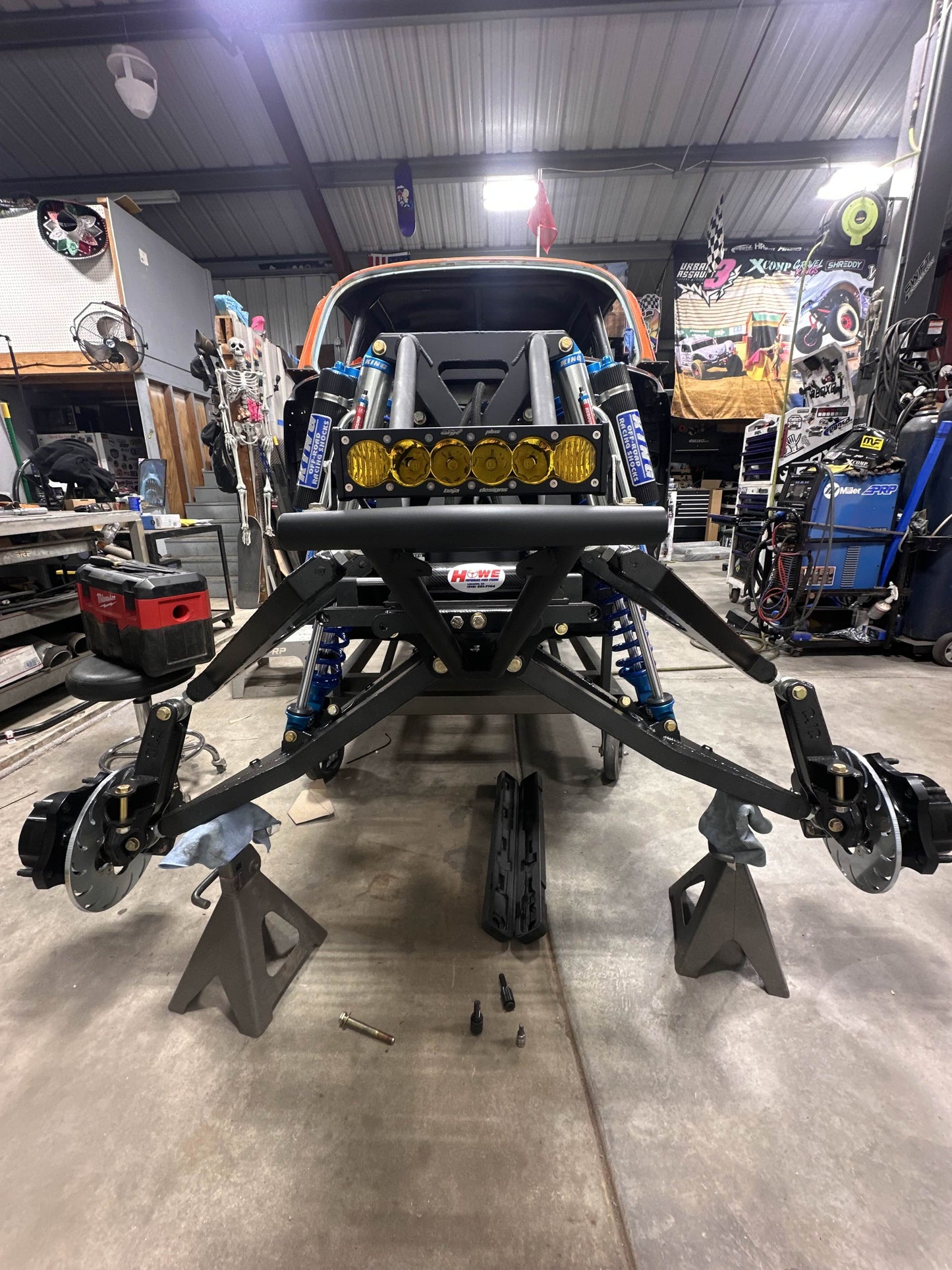

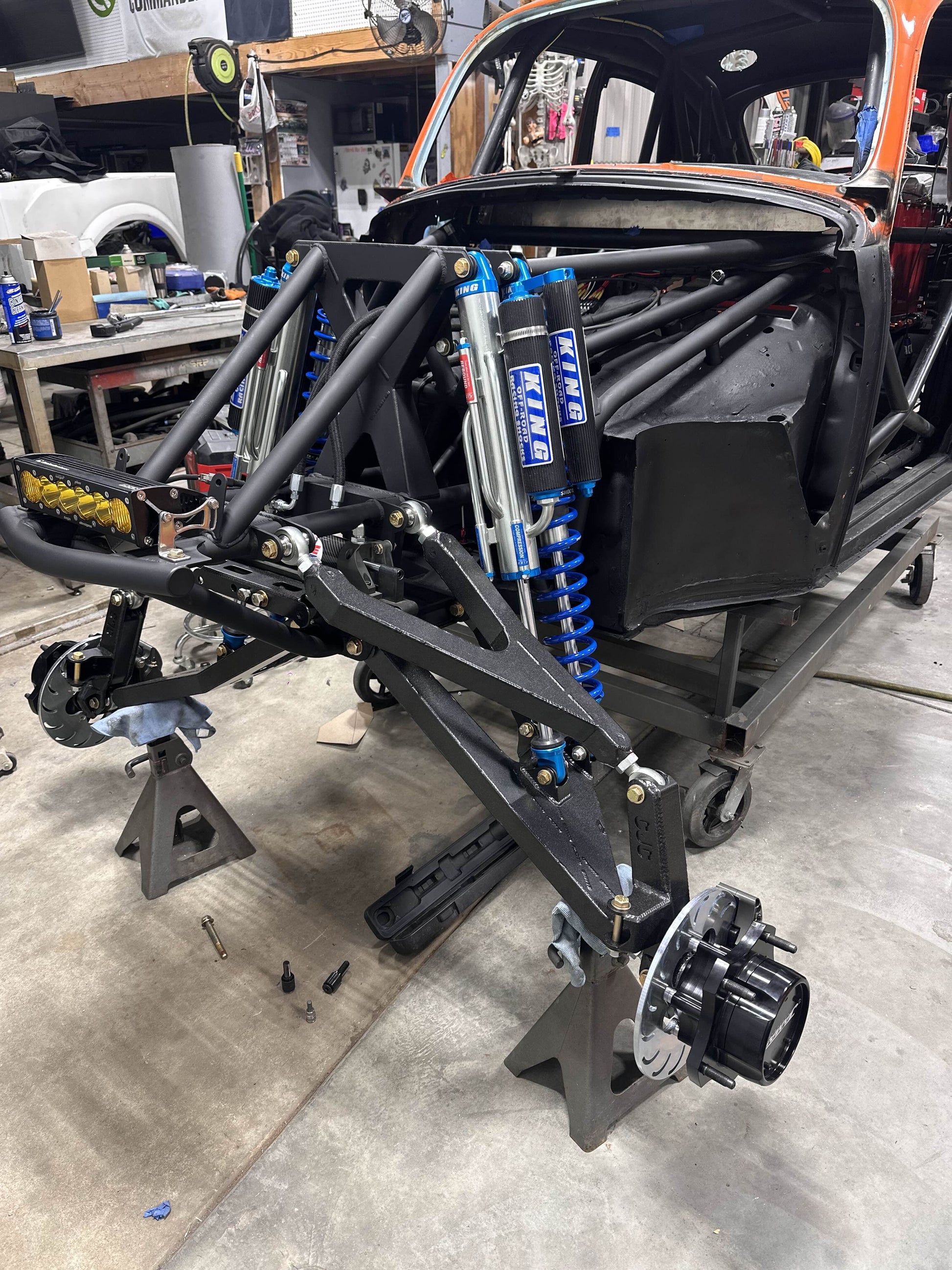

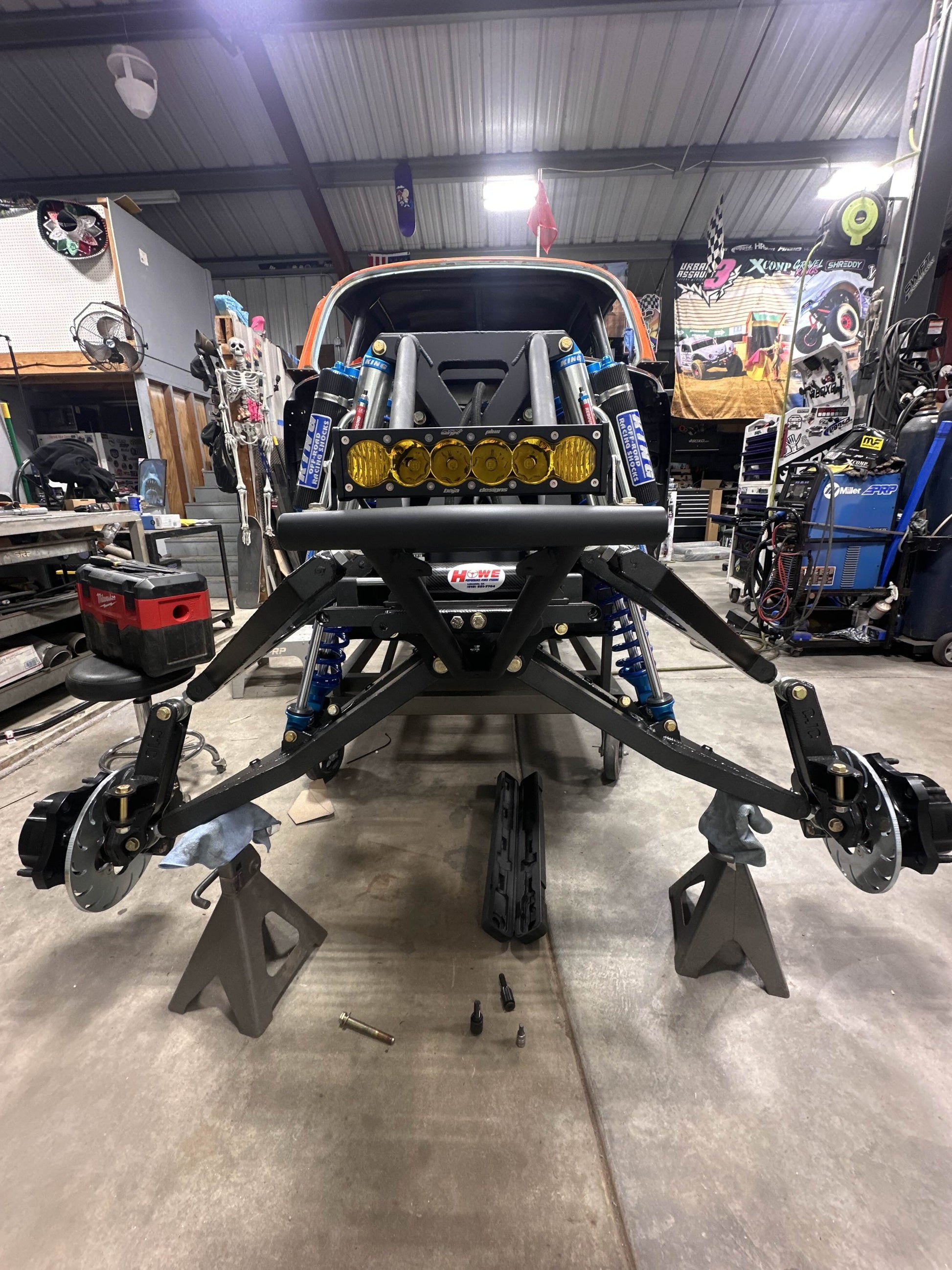

This front end is engineered at 82–84” overall width and delivers up to 22” of travel with zero bump steer. The design features internally ribbed, fully boxed J-arms paired with a boxed bulkhead.
Specifications & Features
82–84” overall width
70.5” wheel mounting surface (WMS) width
Up to 22” of controlled suspension travel
Zero bump steer geometry
Internally ribbed, fully boxed J-arms
Boxed bulkhead construction

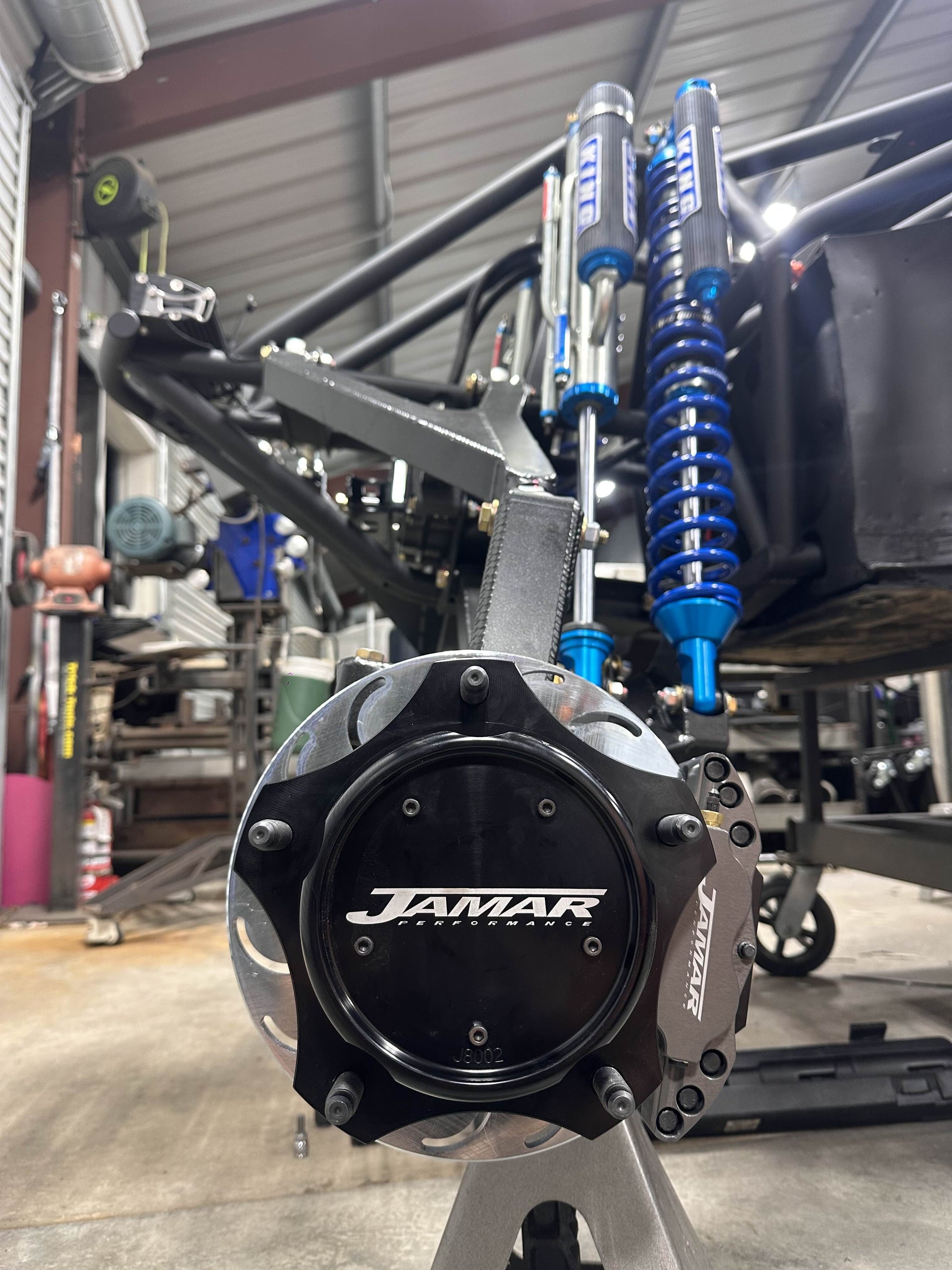

Designed for 2.0 coilover and 2.5 bypass shocks (10” or 12” stroke)
Set up for Howe 2.0 steering rack (other racks can be adapted)
Built to handle 35–37” tires
This is the same proven front-end platform previously run on the Scum Bug, built by Blake Wilkey and featured on the Hoonigan Channel — demonstrating real-world durability and performance.
Each kit is fully designed in CAD, CNC laser cut and bent.

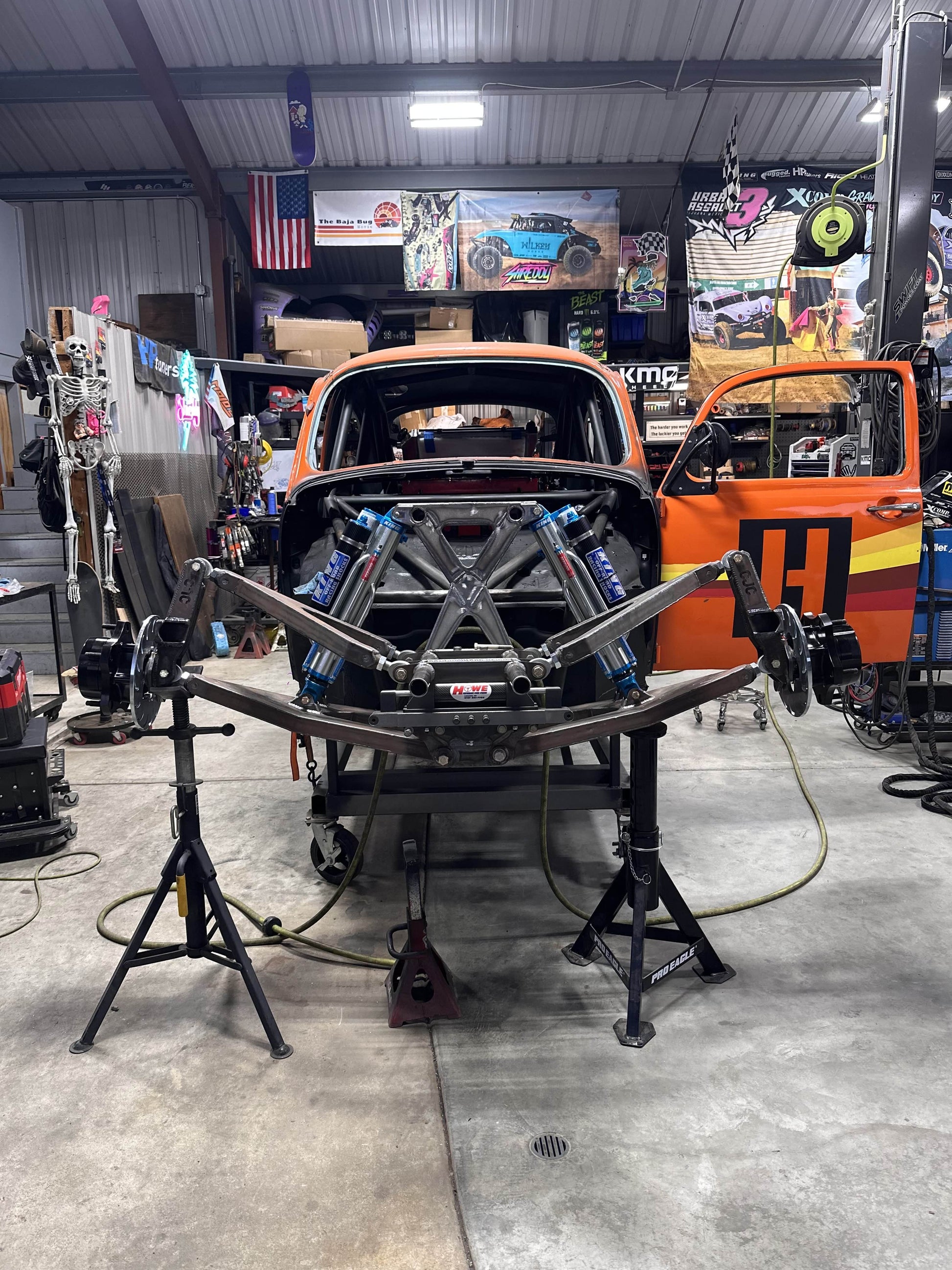

This Kit includes a tie in at the rear of the bulkhead that can be cut to length to fit most Baja Bug cages.
Available Options
Fully welded and assembled
Weld-it-yourself kits
Welded (MIG, includes 2.0 hollow snouts and weld-in bungs)
Mild steel or 4130 chromoly
For additional details or technical inquiries, please reach out through our contact page.
